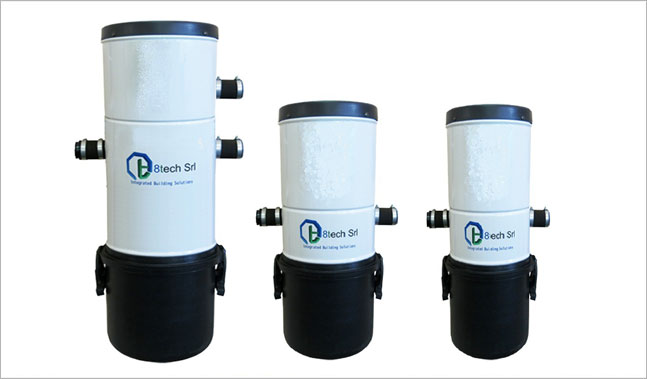

Residential line Planet CYL

Single phase vacuum units made of stainless steel AISI 304 e ABS composed of:

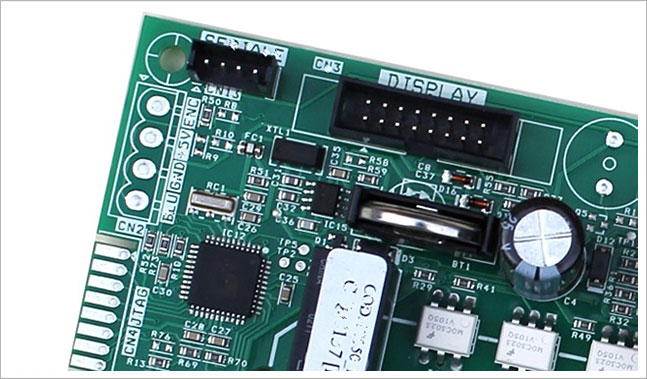

- Turbine brush with 2 or 3 stages depending on the model, with or without directional exhaust outside. Electronic board Soft Starter with maintenance and anomalies reporting : cleaning filter, block plant, engine overheating, emptying the dust container. Thermal circuit breaker, noise filter, supports to attach the motor and under motor gasket made of anti-vibration neoprene. Soundproofing with high density soundproof sponge.

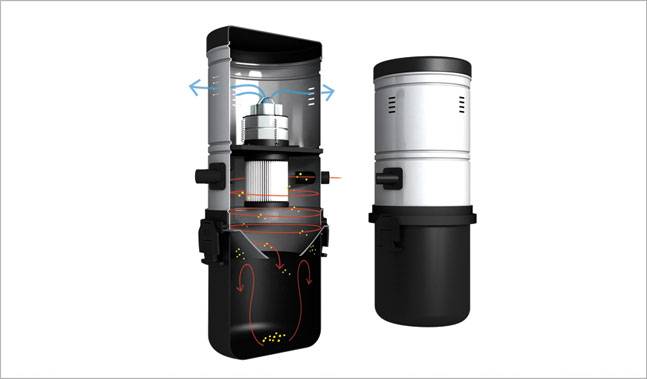

- Cyclonic compartment with double tangential entry for dust, ecological polyester filter cartridge with high filtration efficiency.
- Conveyor cone non-return dust and dust container made of polyethylene with safety handle.

Modello Superficie Max Punti Presa Max   Mars 220 16 Venus 150 9 Neptune 250 15 Uranus 400 18 UranusP 700 22

Residential Line Constellation SQ

Besides the cylindrical series are also available the rectangular system SQU set in the wall.

Single phase vacuum units made of stainless steel AISI 304 e ABS composed of:

- Turbine brush with 2 or 3 stages depending on the model, with or without directional exhaust outside. Electronic board Soft Starter with maintenance and anomalies reporting : cleaning filter, block plant, engine overheating, emptying the dust container. Thermal circuit breaker, noise filter, supports to attach the motor and under motor gasket made of anti-vibration neoprene. Soundproofing with high density soundproof sponge.
- Cyclonic compartment with double tangential entry for dust, ecological polyester filter cartridge with high filtration efficiency.
- Conveyor cone non-return dust and dust container made of polyethylene with safety handle.

Modello Superficie Max Punti Presa Max   Tucana 150 9 Virgo 220 16
